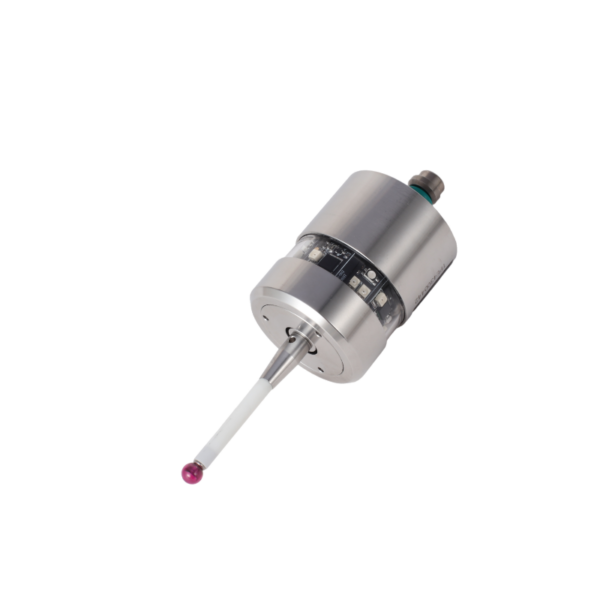

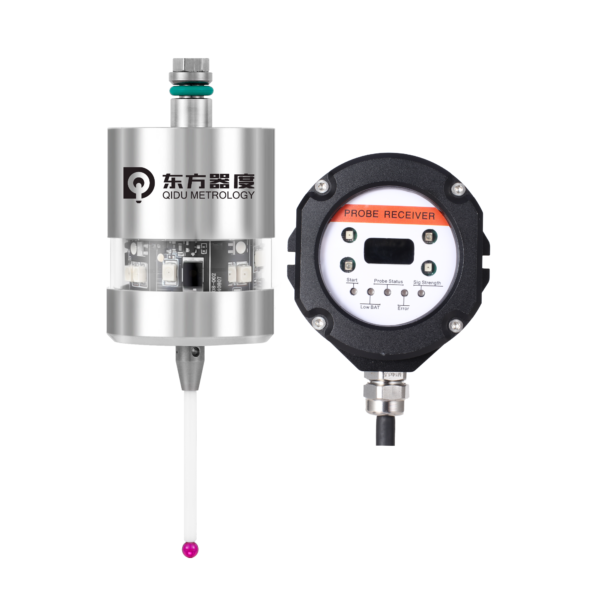

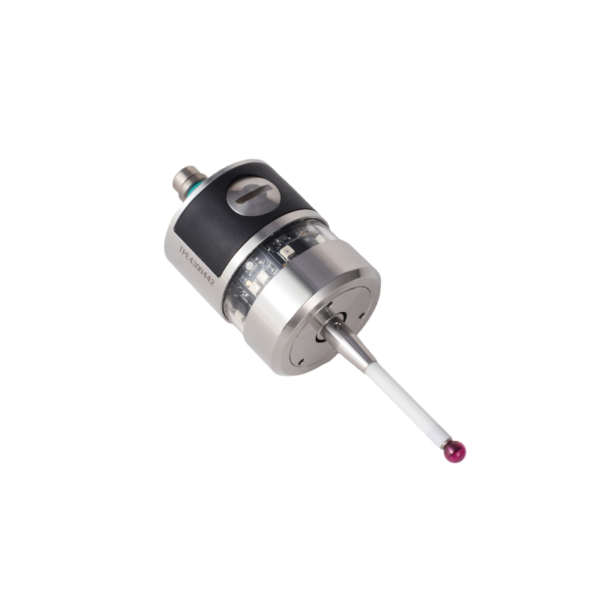

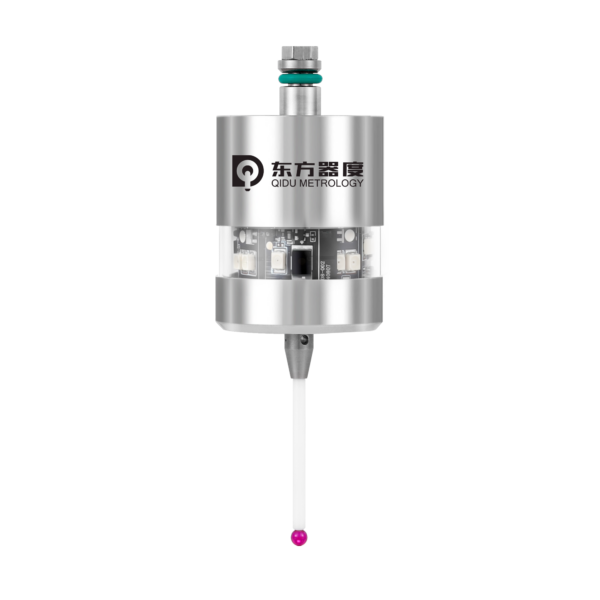

CNC Compatible Touch Probe Wireless Infrared Precision Probe
High‑precision Compatible CNC Wireless Infrared Touch Probe for CNC machines. Delivers accurate, reliable probing with fast infrared communication. Easy to install, robust build with precision stylus for tool setting, part alignment and automated inspection. Ideal for improved machining accuracy.
Main Feature:
Optical 2-channel, remote channel switching
Low power consumption with battery life more than 1 year
< 1/100,000 lost signal probabilityIP68 protection level
Compatible with select brands of probes and receivers.
Advantages:
Simple to use, easy pairing, convenient management,remote frequency switching with a single clickSuitable for 3C factories with high precision requirements,enabling high-precision measurement of various complexworkpieces, significantly improving manufacturing efficiency,reducing employee skill dependency. Automated detectionat the micron level reduces dimensional defects and scraprates, increases production capacity, and saves costs.”
Product Parameters:
| Item No. | DOP40-Pro | |
| Repeatability（2σ） | <1um （stylus：50mm，speed：50~200mm/min） | |
| Trigger direction | ±X,±Y,+Z | |
| Trigger force（stylus：50mm） | XY plane: 0.5~0.9N | Z: 6.2N |
| Protective range | XY plane: +/-12.5° | Z: 6.2mm |
| Signal transmission mode | Infrared Optical | |
| Operating range | 5m | |
| Trigger life | >10 million | |
| Transmission angleTransfer | 360°Transmission envelop | |
| Transfer activation | M Code | |
| Weight without shank | 220g | |
| Battery model | 2x Lithium battery 14250 | |
| Battery life | Stand by | 350days |
| 3000 trigger/day | 300days | |
| 800 trigger/day | 280days | |
| 15000trigger/day | 240days | |
| Continous working: >2 million | ||
| Sealing | IP68 | |
| Operating temperature | 5-60℃ | |
