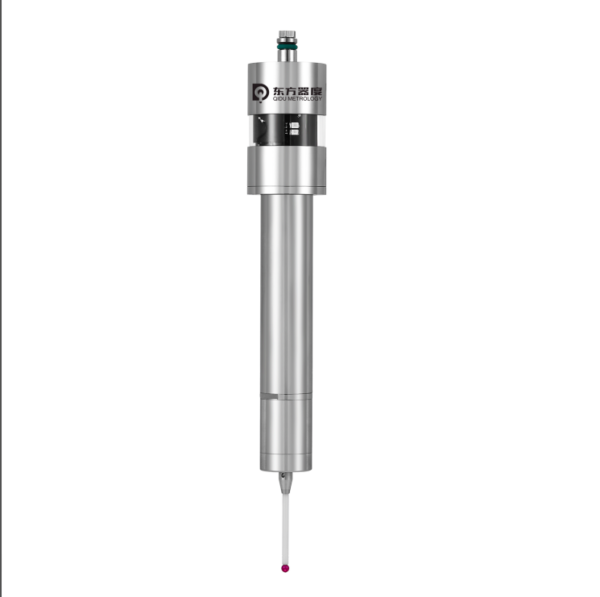

Cnc Modular Touch Probe Precision Measuring Stable Signal
CNC modular touch probe with wireless radio signals for barrier-free transmission in deep cavities. Low power battery life >1 year, <1/100,000 lost-signal probability, smart frequency-cutting technology, and adjustable probe module length with Φ25 modular rods—ideal for mold, automotive, and defense measurement tasks.
Main Feature:
Radio Signals, barrier-free transmission
Low power consumption with battery life more than 1 year
< 1/100,000 lost signal probability
The probe module’s length is adjustable
Smart frequency-cutting technology
Ideal for machining scenarios with deep cavity measurement.
Advantage:
Utilizing wireless radio wave signals, unafraid of obstacles,modular assembly with o25 diameter probe and extendablerods for flexible probe length combinations. Suitable for mold,automotive, and military industries with deep cavitymeasurement requirements.
Product Parameters:
| Item No. | DRP25M | |
| Repeatability（2σ） | <1um（stylus：50mm，speed：50~200mm/min） | |
| Trigger direction | ±X,±Y,+Z | |
| Trigger force（stylus：50mm） | XY plane 0.5~0.9N | Z: 6.2N |
| Protective range | XY plane +/-12.5° | Z: 6.2mm |
| Signal transmission mode | Radio Transmission | |
| Operating range | 15m | |
| Trigger life | >10 million | |
| Transmission angle | 360°Transmission envelop | |
| Radio Frequency | 2.4G | |
| Number of Channels | 83 | |
| Channel Switching | Smart Frequency Hopping | |
| Transmission On | M Code | |
| Battery model | 2x Lithium battery 14250 | |
| Battery life | Stand by | >400days |
| 3000 trigger/day | 350days | |
| 800 trigger/day | 300days | |
| 15000trigger/day | 230days | |
| Continous working: >3.5 million | ||
| Sealing | IP68 | |
| Operating temperature | 5-60℃ | |
