CNC Probe Basics: How a CNC Probe Improves First-Article Setup Time

The core idea (in one sentence)

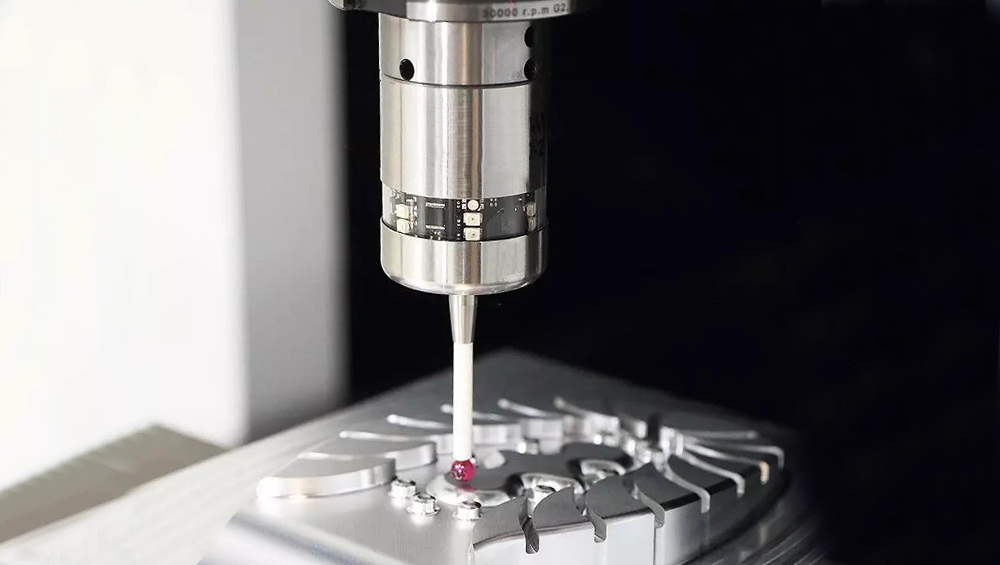

A CNC touch probe turns guesswork into measurements—so you find datums, rotation, centers, and drift in minutes, not by trial, re-cut, and hope.

---

Why first-article takes so long (and where time leaks)

1. Hunting the true zero: Edge-finder, paper feelers, shim stacks.
2. Skew/rotation mystery: Vise or stock is a hair off; you “eyeball” square, cut, and discover it later.
3. Feature verification by teardown: Pull the part, mic it, re-clamp, re-touch, re-cut.
4. Tool wear surprises: First passes look fine, second side is off because the tool is not exactly what CAM assumed.

None of these steps create value. They’re search costs—time spent locating reality.

---

How probing compresses first-article—phase by phase

1) Fast, reliable datums (X/Y/Z)

• Probe touches a face/edge → control sets zeros.
• No subjective “feel”; clean trigger = repeatable microns.

2) Automatic rotation alignment

• Touch two points on a long edge or slot → control rotates workplane.
• CAM stays unchanged; machine aligns to the part.

3) Center finding without math or markers

• Web/pocket or bore/boss cycles touch multiple points → true centerline and size.
• Ensures symmetric toolpaths on the first cut.

4) In-process checks (don’t break down the setup)

• Mid-cycle, measure a bore or boss → adjust wear or stop.
• Catch “nearly right” before it becomes scrapped metal.

5) Digital traceability

• Values drop into macro variables or logs → no “what did we set last time?” mysteries.

---

Before/After timeline (realistic VMC example)

Step	Manual (mins)	With Probe (mins)
Mount & rough square stock	10	10
Find X/Y/Z zeros	15	3
Set rotation	8	2
Find centers (bore/boss)	10	3
First verification cuts	15	4
Measure & tweak wear	10	3
Total	68	25

Result: ~43 minutes saved on the first-article—>60% reduction. On 3 setups/day, that’s >2 hours back to the schedule.

---

A first-article probing routine you can standardize

1. Home & warmup (machine health first).
2. Probe Z0 reference face (clean, consistent surface).
3. Probe X/Y faces to set zeros and check stock size.
4. Rotation cycle on a long edge or slot (store angle).
5. Bore/boss center for primary features (store center, diameter).
6. Critical feature check (e.g., +0/-0.01 on pocket depth → nudge wear).
7. Stamp results to variables or a CSV log (part ID, operator, time).
8. Run first-article toolpath with confidence.

Make it one button: a master program that calls subroutines like MEASURE_FACE, SET_ROTATION, BORE_CENTER, FEATURE_CHECK.

---

Example (conceptual) macro calls

( Set Z0 on top face )
G65 P9811 Z0. Q5.      (Touch Z, 5-point confirm)

( Align rotation on X edge )
G65 P9843 X100. Y0. Q80.   (Two touches 80 mm apart)

( Find bore center/diameter )
G65 P9814 X50. Y50. Q8. F50.   (8-point bore, safe feed)

( Feature check & wear update )
#100 = [#502 - 12.000]      (Measured - nominal)
IF[ABS[#100] GT 0.01] THEN #3000=1 (OUT OF TOL)
#2001 = #2001 + [#100 * 0.5] (Half-error wear nudge)

Notes: cycle numbers/args vary by vendor—keep a shop-standard wrapper.

---

Fixture & workflow tweaks that multiply the gains

• Give the probe a lane: Park receiver (IR) or ensure signal path (radio). No blind spots behind tool rack.
• Probe-friendly reference faces: Add a small clean pad or boss in the soft jaws expressly for Z0.
• Double-touch for confirmation: Air blast, touch, retract, touch again. Filters chips and coolant films.
• Qualify the stylus often: After any “oops,” re-seat and qualify—seconds now, hours saved later.
• Log the angle: Saving the rotation lets repeat jobs start at “known good.”

---

Mini case study (high-mix job shop)

• Part: Aluminum enclosure, ±0.02 mm on bore location.
• Old first-article: 75–90 min; two re-cuts common.
• After probing SOP: 28–35 min; re-cuts rare.
• Side effect: Operators stopped avoiding short-run jobs—schedule became smoother.

---

Quick ROI math (conservative)

• Time saved per FA: 40 minutes.
• Setups/day: 3 → 120 min/day.
• Shop rate (burdened): $45/hr → $90/day.
• 250 days/year: $22,500/year before scrap reduction.
• Most probe kits are paid off in weeks, not years.

---

Common pitfalls—fast fixes

• False triggers from chips: Add an M-code air blast; always double-touch.
• IR line-of-sight issues: Reposition receiver or add repeater; avoid enclosure shadows.
• Radio pairing roulette: Label pairs; standardize a 2-step “pair & test” card.
• Wired strain relief ignored: High-flex cable + correct bend radius + real clamps.
• Unqualified stylus after bump: Re-qualify length/radius immediately.

---

Choosing IR, radio, or wired (for first-article speed)

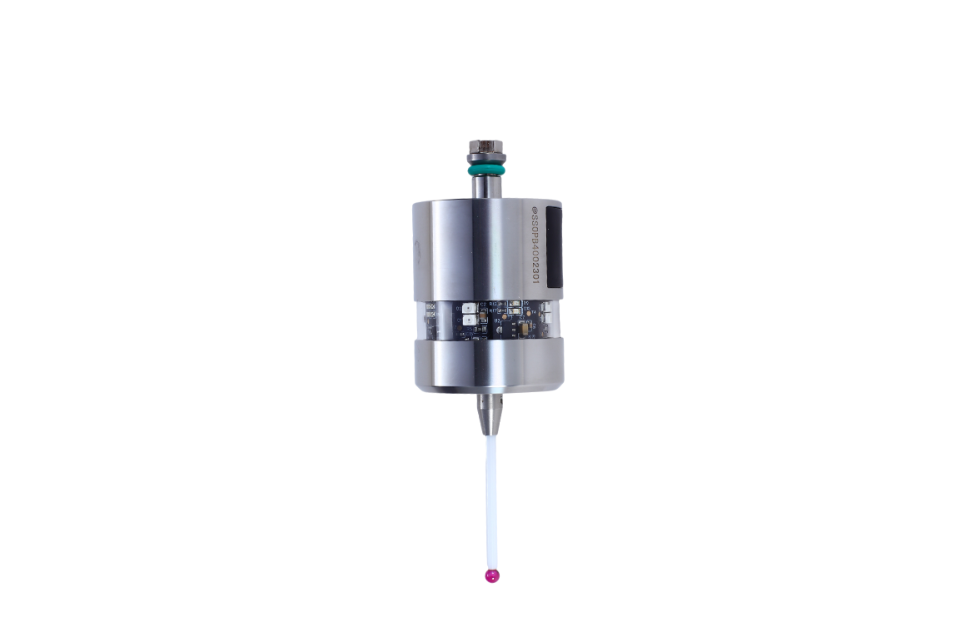

• IR: Compact VMCs with clear view—simple and battery-friendly.
• Radio: 5-axis, horizontals, big doors—no line-of-sight drama.

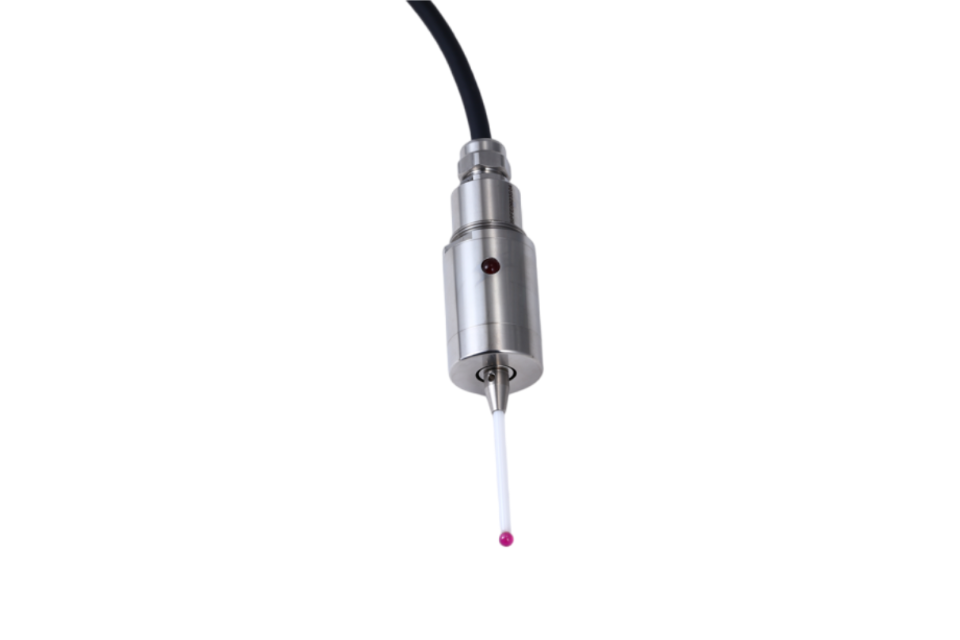

• Wired: EDM/noisy EMI or tiny travels—rock-solid, zero pairing.

Pick the link that removes setup friction in your cell.

---

KPIs to prove you’re winning

• First-article minutes (target: -50–70%).
• First-article re-cuts per job (target: ≈0).
• Scrap on first run (target: near zero).
• Operator interventions during lights-out (target: trending down).
• Probe cycle count vs. alarms (reliability trend).

---

The takeaway

First-article speed isn’t luck—it’s measurement. A probe gives your machine the facts, aligns the program to reality, and verifies results before mistakes compound. Standardize one probing routine, and your shop will feel the time dividend on day one.
