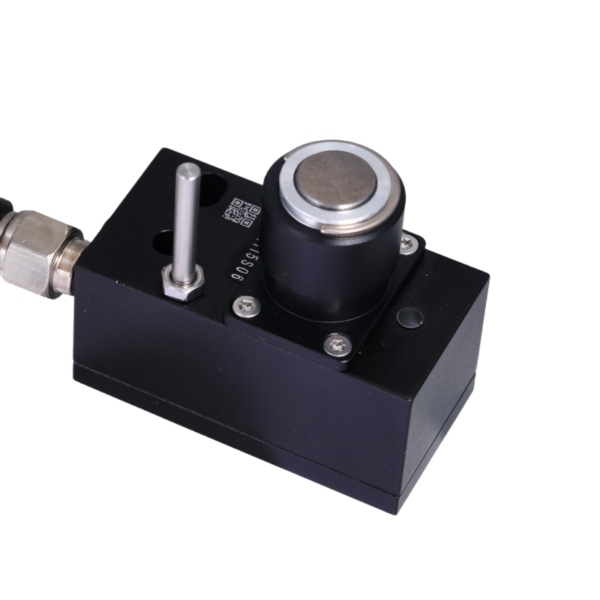

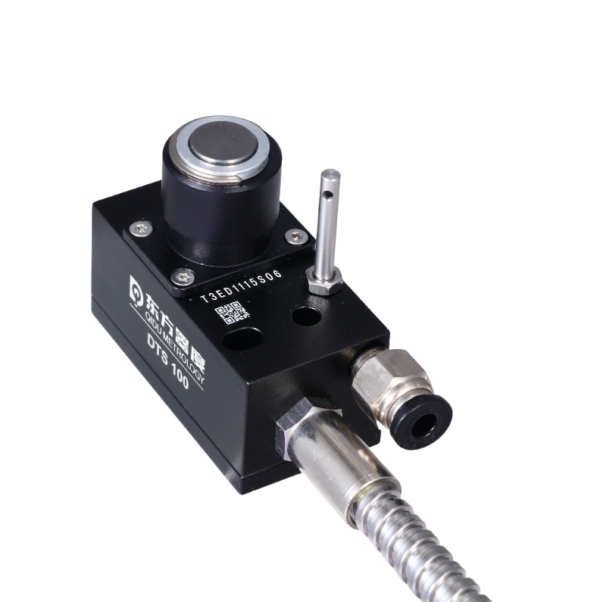

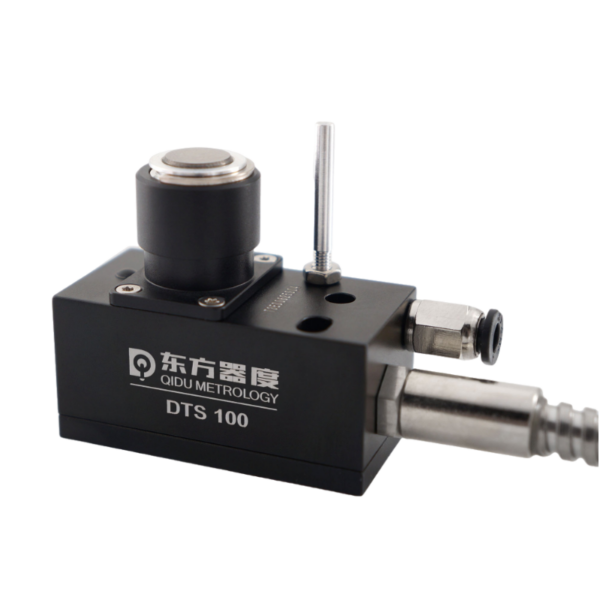

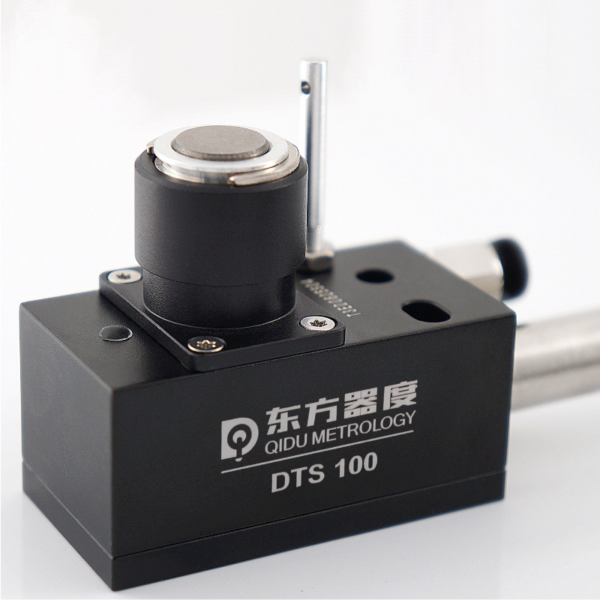

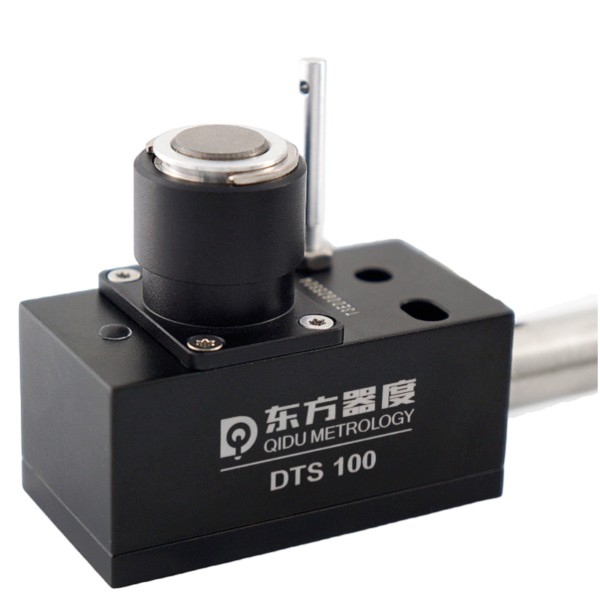

Cnc Single-Axis Wired Tool Setter Small Diameter High Repeat
CNC Single-axis single-axis wired tool setter with IP68 sealing and low trigger force for small-diameter tools. Photoelectric sensor trigger ensures high accuracy and long life. Measures/compensates tool length (0.1–10mm), detects broken tools, and supports precision carving and high-gloss machines.
Main Feature:
IP 68 protection level
Low trigger force, available for detecting small-diameter cutting tools
Photoelectric sensor triggering for higher accuracy and longer lifespan
Fit for Precision Carving Machine and High Gloss Machine
Advantage:
A one-axis tool setter that can measure and compensate for toollength in the range of 0.1 to 10mm, perform broken tooldetection, and automatic compensation. The product uses cabletransmission for signal execution, with a photoelectric triggerswitch, high-hardness, highly wear-resistant hard contact head,and signal transmission interface. It is primarily used in small-stroke machine tools such as precision engraving machines andhigh-intensity light machines.
Product Parameters:
| Item NO. | DTS100 | |
| Diameter of touch pad | φ10 | |
| Trigger direction | +Z | |
| Pre-stroke | 0.5mm | |
| Output | A:NC | |
| Stroke | 6.0mm | |
| Trigger protection travel | 3.5mm | |
| Repeatablitity precision(2σ） | <1um（speed50mm/min） | |
| Trigger life | >10 million | |
| Signal transmission mode | Cable 5m,oil resistance,6cores,φ4.8 | |
| Sealing | IP68 | |
| Triggerforce | 1.8N(Installation Status: Vertical) | |
| Touch pad material | Tungsten carbide | |
| Surface treatment | Grinding 4S | |
| Contact nominal value | DC24V 20mA(MAX) Recommended value10mA)Resistive Load | |
| Protective tube | 1.5m,minimum radius R7 | |
| LED light | Norma: off; active: on | |
