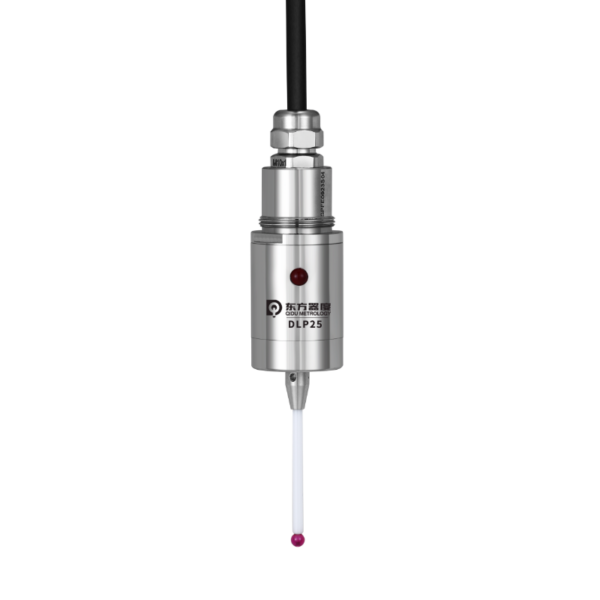

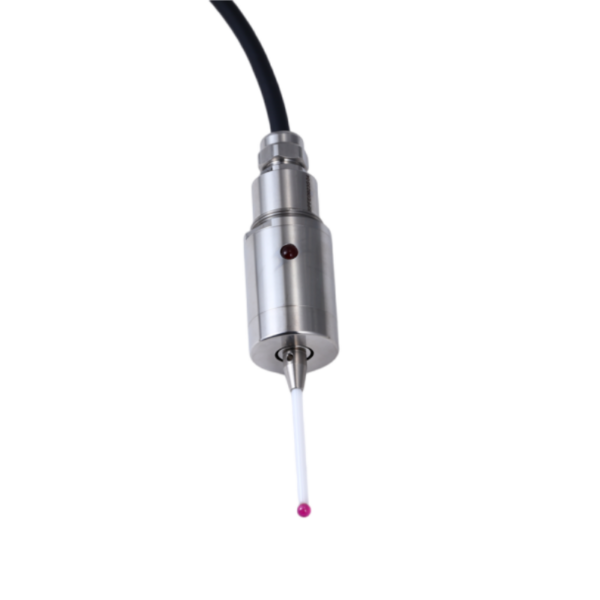

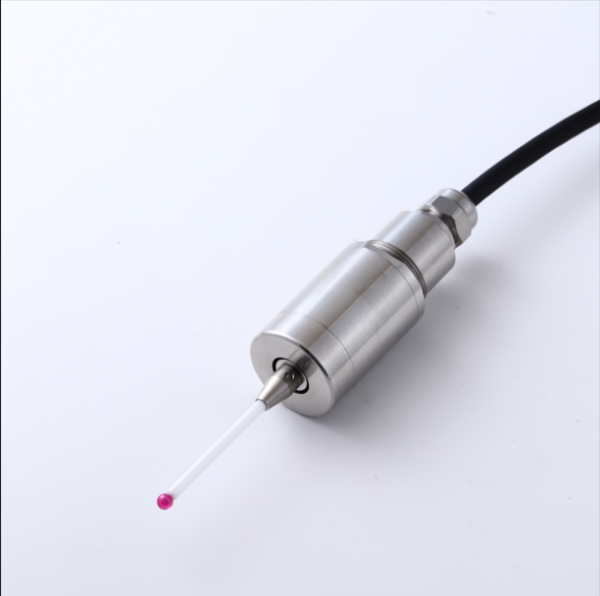

CNC Transmission wired touch probe High Accuracy Signal
CNC wired touch probe built for high precision and grinding applications. IP68 dual-seal protection, modular design with customizable probe length, industry-leading stability, and clear indicator lights for instant status visibility—ideal for demanding coolant- and dust-heavy environments.
Main Feature:
Ip68 protection rating with a dual-seal protective structure
Modular assembly, customizable probe length
Exceptional operational stability, industry leader
Indicator lights for easy visibility of operational status
Suitable for the high-precision and grinding industries
Advantage:
Utilizes cable connection to maintain real-timecommunication with CNC machine, enabling datatransmission, automatic correction, auto-centering,and automatic compensation. Employs autonomous.
Product Parameters:
| Item No. | DLP25 | |
| Repeatability（2σ） | <1um（stylus：50mm，speed：50~200mm/min） | |
| Trigger direction | ±X,±Y,+Z | |
| Trigger force（stylus：50mm） | XY plane 0.5~0.9N | Z: 6.2N |
| Protective range | XY plane +/-12.5° | Z: 6.2mm |
| Signal transmission mode | Cable | |
| Trigger life | >10 million | |
| Weight | 80g | |
| Cable | 5m, oil resistance, 4 cores,φ5mm | |
| Housing Material | 316 stainless steel | |
| Sealing | IP68 | |
| Operating temperature | 5-60℃ | |
