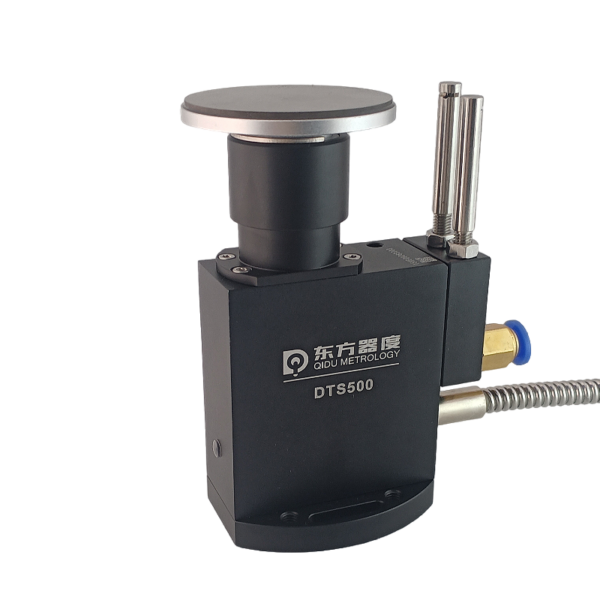

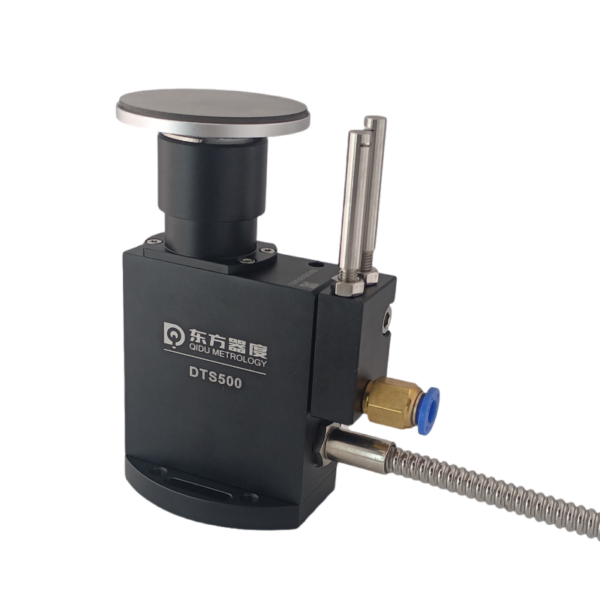

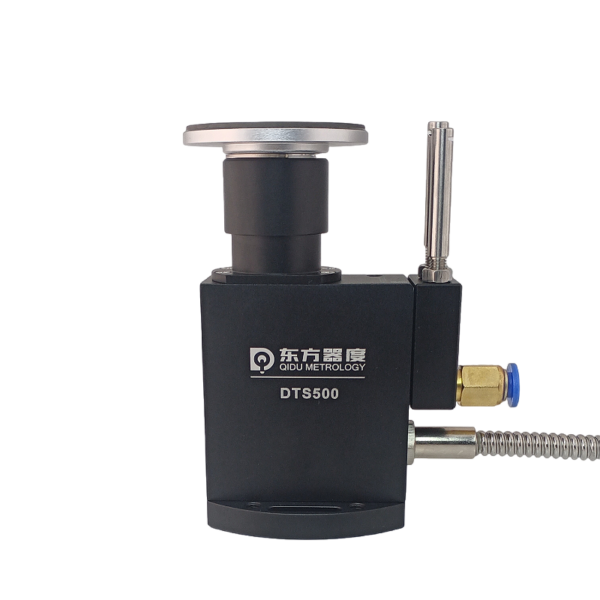

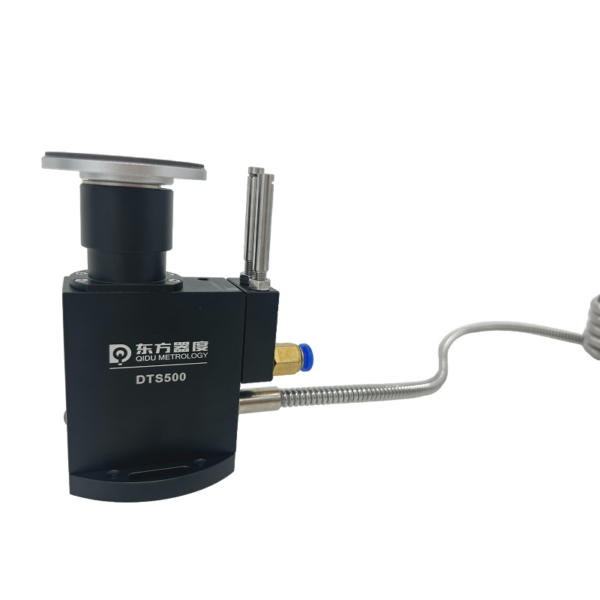

Fast CNC Z-Axis Tool Setter For Extra Large Tool Diameter

Precision CNC Z‑axis tool setter for automatic tool height measurement and Z‑zero calibration on CNC machines. Enhances machining accuracy by quickly detecting tool tip contact and feeding offsets to the controller. Durable housing and responsive trigger ensure reliable performance in demanding industrial environments.

Product inquiry
Category: Tags: , ,
Share your love

Main Feature:

IP 68 protection level
Large Strok design of 11mm
Precision <0.5uM.
Photoelectric sensor trigger, higher accuracy and longer life



Advantage:

Automatically measures tool length, tool diameter, andtool deflection. The high-precision photoelectric triggersensor can operate in various complex environments,improving tool detection speed and accuracy, reducingerrors, minimizing scrap, and increasing productivity.



Product Parameters:

Item NO. DTS500
Diameter of touch pad φ50
Trigger direction +Z
Pre-stroke 0.7mm
Output A:NO
Stroke 11mm
Trigger protection travel 5.5mm
Repeatablitity precision(2σ） <1um（speed 50mm/min）
Trigger life >10 million
Signal transmission mode Cable
5m,oil resistance,6cores,φ4.8
Sealing IP68
Triggerforce 2.2N(Installation Status: Vertical)
Touch pad material Tungsten carbide
Surface treatment Grinding 4S
Contact nominal value DC24V 20mA(MAX) Recommended value10mA)Resistive Load
Protective tube 1.5m,minimum radius R7
LED light Norma: off; active: on
