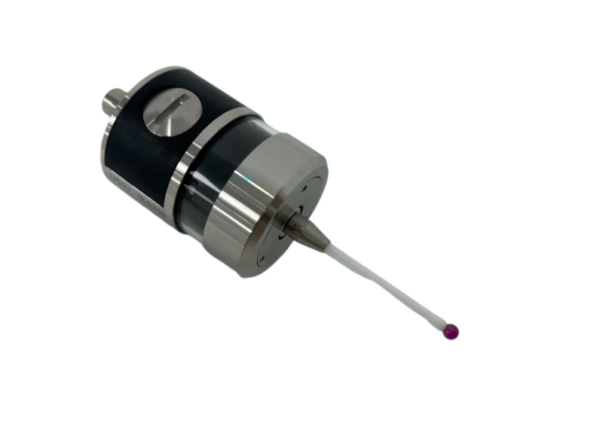

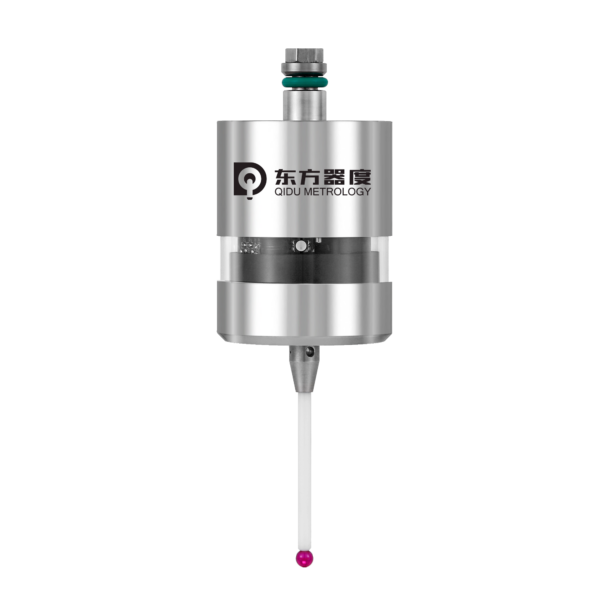

High Precision Measurement CNC Wireless Radio Touch Probe
CNC wireless radio touch probe with barrier-free transmission for fast, accurate setup and in-process inspection. Ultra-stable RF link with <1/100,000 signal-loss probability, infinite channel technology, and IP68 protection for harsh coolant and chip environments.
Main Feature:
Radio signals, barrier-free transimion
< 1/100,000 lost signal probability
Infinite channel technology
Radio signal, barrier-free transmission
IP68 protective level
Advantage:
Reliable frequency-hopping wireless communication,extremely high operational stability, particularly suitablefor complex measurement requirements or signaltransmission over long distances or in situations withobstacles, such as online measurements in multi-axismachines.”
Product Parameters:
| Item No. | DRP40-P2 | |
| Repeatability（2σ） | <1um （stylus：50mm，speed: 50~200mm/min） | |
| Trigger direction | ±X,±Y,+Z | |
| Trigger force（stylus：50mm） | XY plane 0.5~0.9N | Z: 6.2N |
| Protective range | XY plane +/-12.5° | Z: 6.2mm |
| Signal transmission mode | Radio Transmission | |
| Operating range | 15m | |
| Trigger life | >10 million | |
| Transmission angle | 360°Transmission envelop | |
| Radio Frequency | 2.4GHz | |
| Number of Channels | 83 | |
| Channel Switching | Smart Frequency Hopping | |
| Transmission On | M Code | |
| Weight without shank | 220g（Not included battery） | |
| Battery model | 2x Lithium battery 14250 | |
| Battery life | Stand by | >400days |
| 3000 trigger/day | 350days | |
| 800 trigger/day | 300days | |
| 15000trigger/day | 230days | |
| Continous working: >3.5 million | ||
| Sealing | IP68 | |
| Operating temperature | 5-60℃ | |
