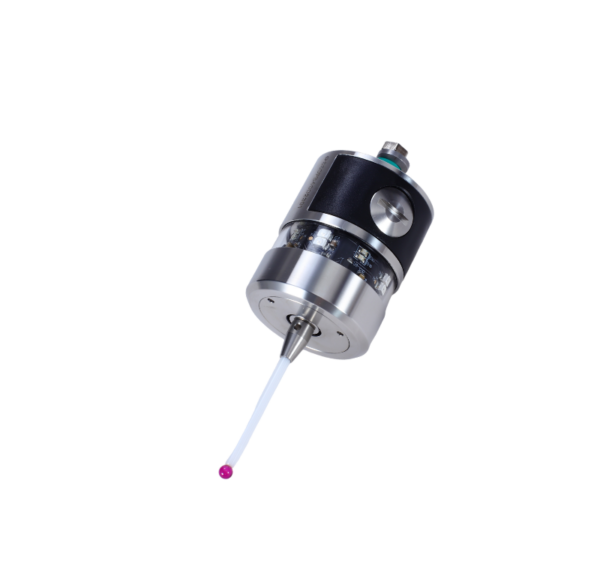

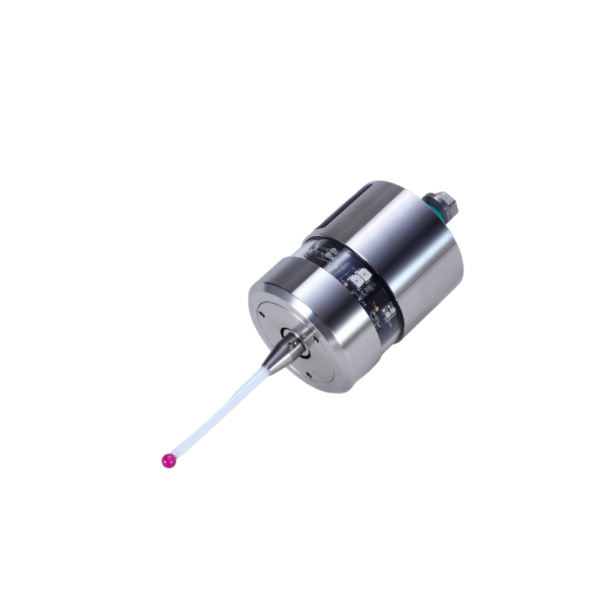

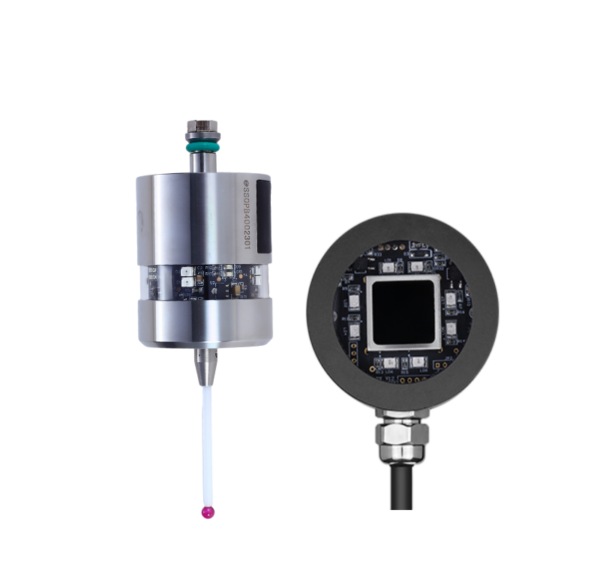

High Quality CNC Infrared Touch Probe with Wireless Link
CNC wireless infrared touch probe for fast, accurate part setting and in-process inspection. Compact, sealed metal body with ruby stylus, 360° triggering and clear status indication. Stable IR link, easy integration with most machining centers, low maintenance, rugged durability.
Main Feature:
Optical 2-channel, remote channel switching
Low power consumption with battery life more than 1 year
< 1/100,000 lost signal probabilityIP68 protection level
Advantages:
Simple to use, easy pairing, convenient management,remote frequency switching with a single clickSuitable for 3C factories with high precision requirements,enabling high-precision measurement of various complexworkpieces, significantly improving manufacturing efficiency,reducing employee skill dependency. Automated detectionat the micron level reduces dimensional defects and scraprates, increases production capacity, and saves costs.”
Product Parameters:
| Item No. | DOP40 | |
| Repeatability（2σ） | <1um （stylus：50mm，Speed：50~200mm/min） | |
| Trigger direction | ±X,±Y,+Z | |
| Trigger force（stylus：50mm） | XY plane: 0.5~0.9N | Z: 6.2N |
| Protective range | XY plane: +/-12.5° | Z： 6.2mm |
| Signal transmission mode | Infrared Optical | |
| Operating range | 5m | |
| Trigger life | >10 million | |
| Transmission angleTransfer | 360°Transmission envelop | |
| Transfer activation | Automatic change | |
| Weight without shank | 220g | |
| Battery model | 2x Lithium battery 14250 | |
| Battery life | Stand by | 1300days |
| 3000 trigger/day | 450days | |
| 800 trigger/day | 200days | |
| 15000trigger/day | 120days | |
| Continous working: 7 million | ||
| Sealing | IP68 | |
| Operating temperature | 5-60℃ | |
