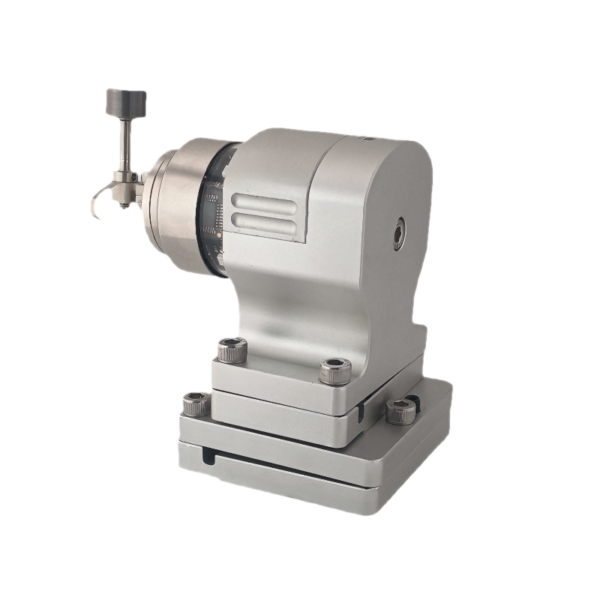

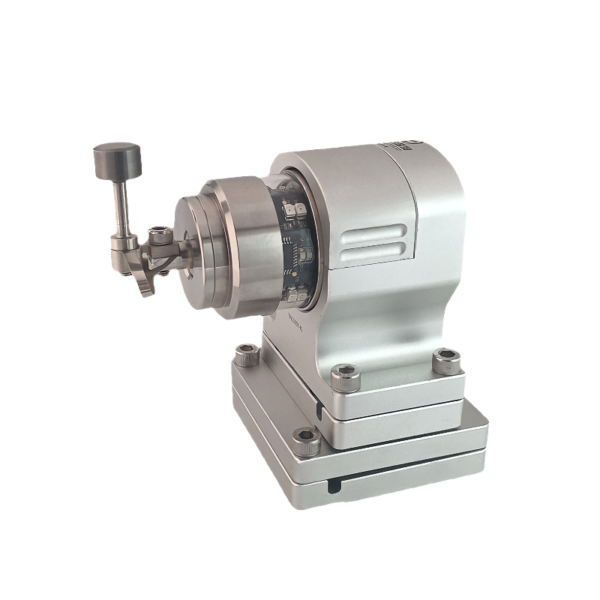

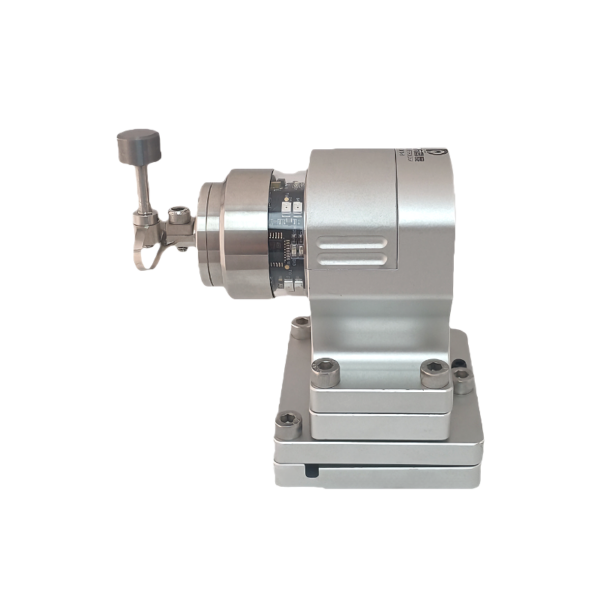

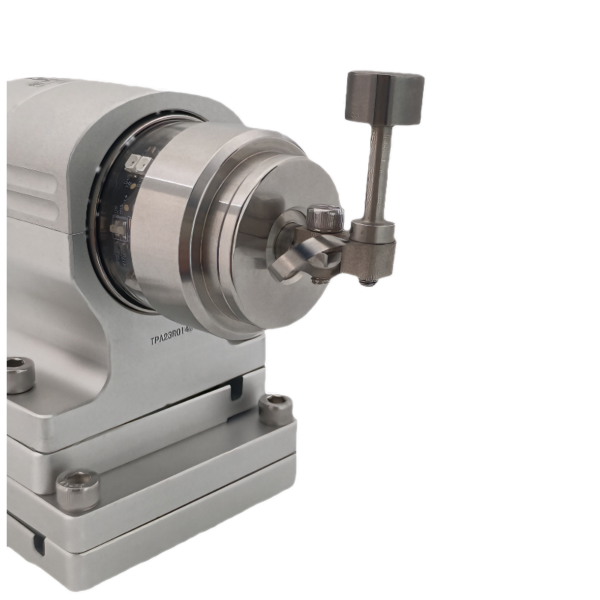

Wireless Five-Axis Infrared Tool Setter for CNC Machines
Wireless five‑axis infrared tool setter for CNC machines with high‑precision IR sensing and breakage detection. Enables automated tool length measurement on all five axes, supports wireless signal output, and improves machining accuracy and efficiency in complex multi‑axis CNC setups.
Main Feature：
Radio Transmission
Automatic measurement of tool length and diameter
Ip68 protection level
Suitable for the far distance or obstacles Machining center
CNC lathe with rotary workstations or multi-workstations available
Advantage：
A contact-type 3D tool setter that can detect and automatically compensate for various broken knives, tool diameters and tool wear. It has a horizontal design, the main body is effectively anti-collision, and the ceramic design of the adapter rod effectively protects the sensor after the contact hits.The product uses radio signal transmission and is mainly used in machine tools with limited cable use, such as double-table machining centers.It can automatically identify tool wear and broken tool conditions, help factories to improve production efficiency and product machining accuracy.
Product Parameters:
| Item No. | DMTS-R | |
| Repeatability (2σ) | <1μm (Speed: 30mm/min) | |
| Trigger Direction | ±X,±Y,+Z | |
| Pre-Stroke | None | |
| Stroke | XY Plane: 6.0mm | Z-axis: 5.1mm |
| Trigger Life | >10 million cycles | |
| Protection | IP68 | |
| Contact Force | 1.1N ~ 2.2N (depending on trigger direction) | |
| Signal Transmission Method | Radio transmission | |
| Transmission Angle | 360° around probe axis | |
| Radio Frequency | 2.4GHz | |
| Channel Switching | Intelligent frequency hopping | |
| Transmission Activation | M Code | |
| Contact Material | Super hard Alloy | |
| Surface Treatment | Grinding 4S | |
| Battery Type | 2 x Lithium battery 14250 | |
| Battery Life | Standby | >400 days |
| 3000 triggers/day | 350 days | |
| 8000 triggers/day | 300 days | |
| 15000 triggers/day | 230 days | |
| Continuous triggering: >3.5 million cycles | ||
| Sealing | IP68 | |
| Operating Temperature | 5-60°C | |
