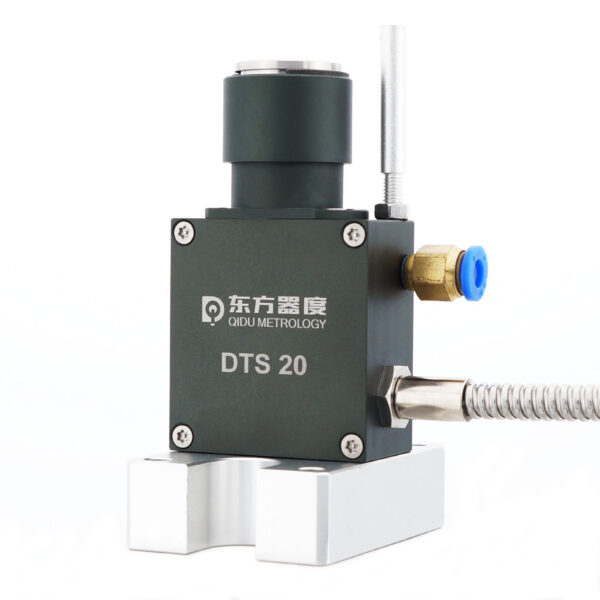

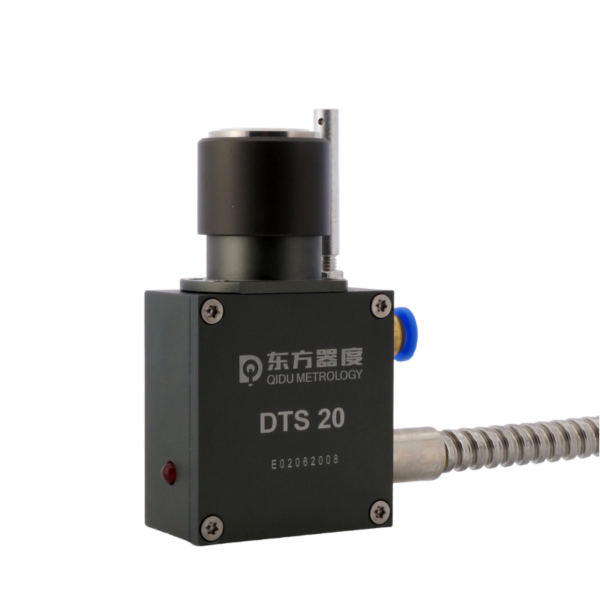

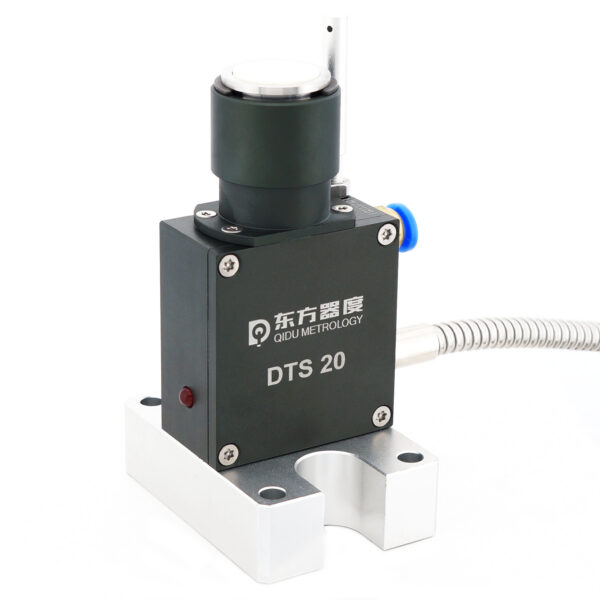

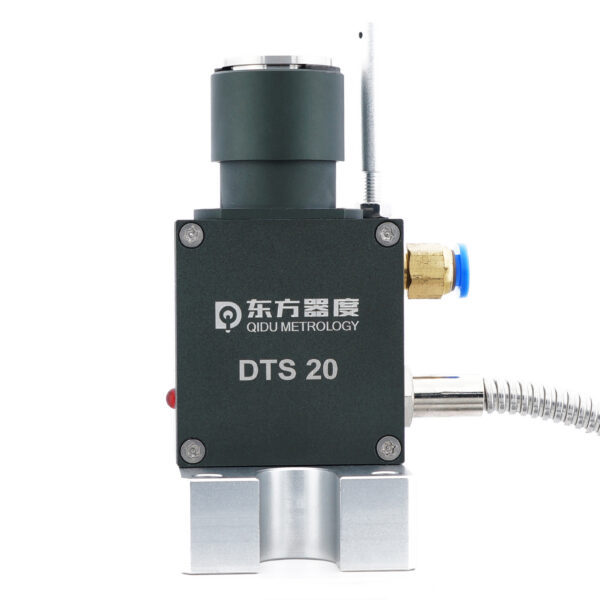

CNC Optical Z-Axis Tool Setter with Breakage Detection
High‑precision CNC optical Z‑axis tool setter with breakage detection for machine tools. Fast, non‑contact optical measurement ensures accurate tool length compensation and automatic tool breakage monitoring. Durable build with easy integration into milling and machining centers.
Main Feature:
IP 68 protection level
Large Strok design
Precision <0.5uM.
Photoelectric sensor trigger, higher accuracy and longer life
Advantage:
Automatically measures tool length, tool diameter, and tool deflection. The high-precision photoelectric trigger sensor can operate in various complex environments,improving tool detection speed and accuracy, reducing errors, minimizing scrap, and increasing productivity.
Product Parameters:
| Item NO. | DTS200 | |
| Diameter of touch pad | φ20 | |
| Trigger direction | +Z | |
| Output | A:NO | |
| Repeatablitity precision(2σ） | <1um（speed 50mm/min） | |
| Trigger life | >10 million | |
| Signal transmission mode | Cable 5m,oil resistance,6cores,φ4.8 |
|
| Sealing | IP68 | |
| Triggerforce | 2.2N(Installation Status: Vertical) | |
| Touch pad material | Tungsten carbide | |
| Surface treatment | Grinding 4S | |
| Contact nominal value | DC24V 20mA(MAX) Recommended value10mA)Resistive Load | |
| Protective tube | 1.5m,minimum radius R7 | |
| LED light | Norma: off; active: on | |
