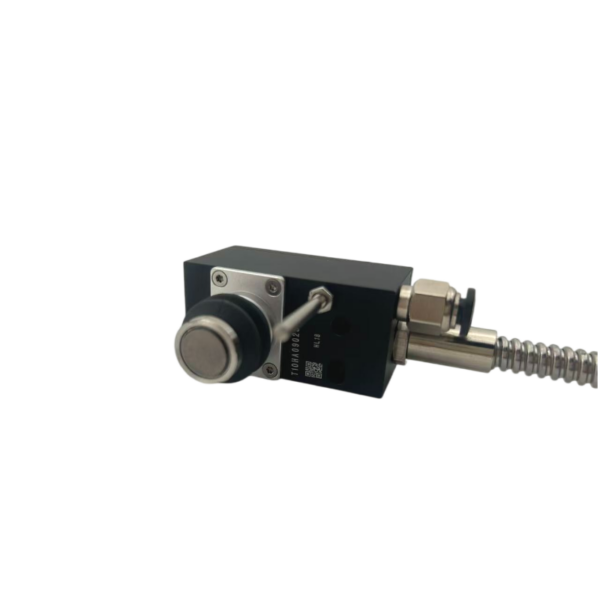

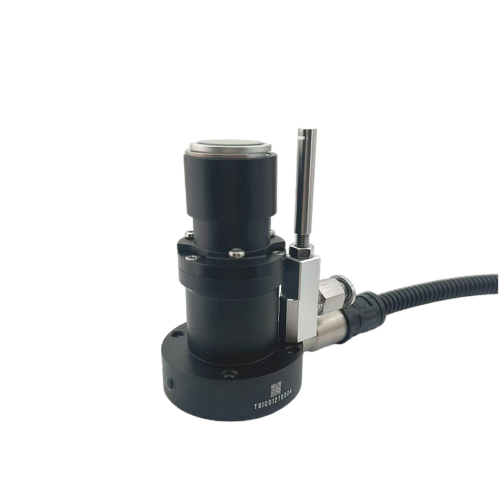

IP68 CNC Chip-Proof One-Way Tool Setter Photoelectric
IP68 chip-proof one-way CNC tool setter with photoelectric triggering for fast, repeatable Z tool length setting. Detects micro tools (Ø0.1–10 mm) with low trigger force, supports broken tool detection and automatic compensation, and uses hard-wired signal output for engraving and high-gloss machines.
Main Feature:
IP 68 protection level

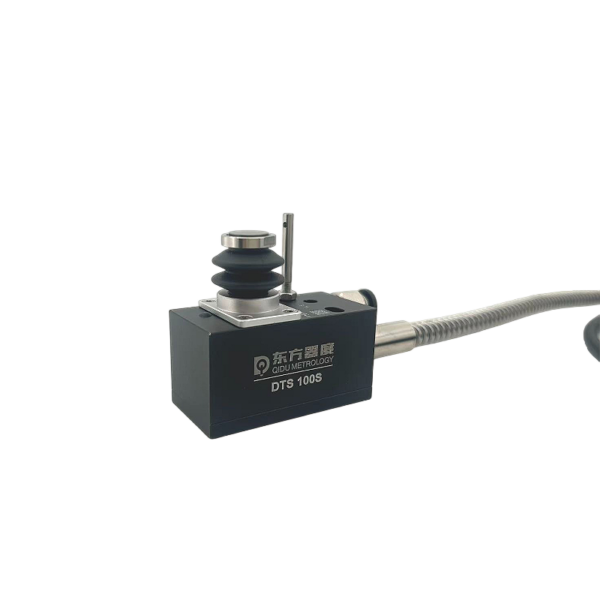

Low trigger force, available for detecting small-diameter cutting tools. And the protective cover prevents cutting chips from entering the equipment.
Photoelectric sensor triggering for higher accuracy and longer lifespan.
Fit for Precision Carving Machine and High Gloss Machine.
Advantage:
A one-axis tool setter that can measure and compensate for toollength in the range of 0.1 to 10mm, perform broken tooldetection, and automatic compensation. The product uses cabletransmission for signal execution, with a photoelectric triggerswitch, high-hardness, highly wear-resistant hard contact head,and signal transmission interface. It is primarily used in small-stroke machine tools such as precision engraving machines andhigh-intensity light machines.In addition, we have specially added a protective cover for this product, it can prevents cutting chips from entering the equipment.
Product Parameters:

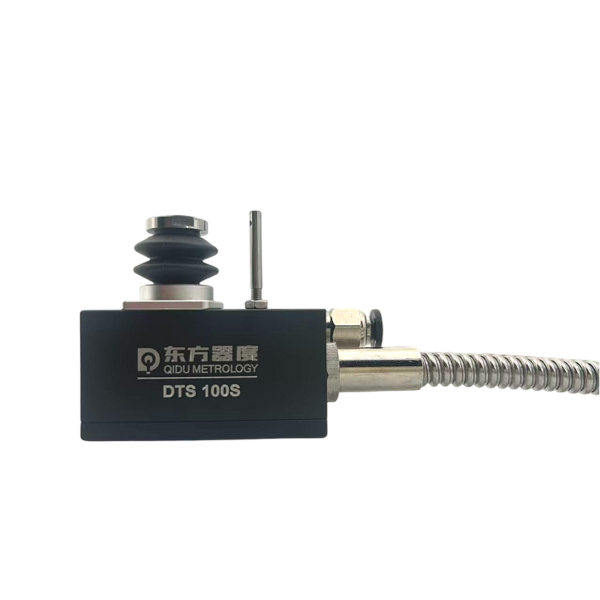

| Item NO. | DTS100S | |
| Diameter of touch pad | φ10 | |
| Trigger direction | +Z | |
| Pre-stroke | 0.5mm | |
| Output | A:NC | |
| Stroke | 6.0mm | |
| Trigger protection travel | 3.5mm | |
| Repeatablitity precision(2σ） | <1um（speed50mm/min） | |
| Trigger life | >10 million | |

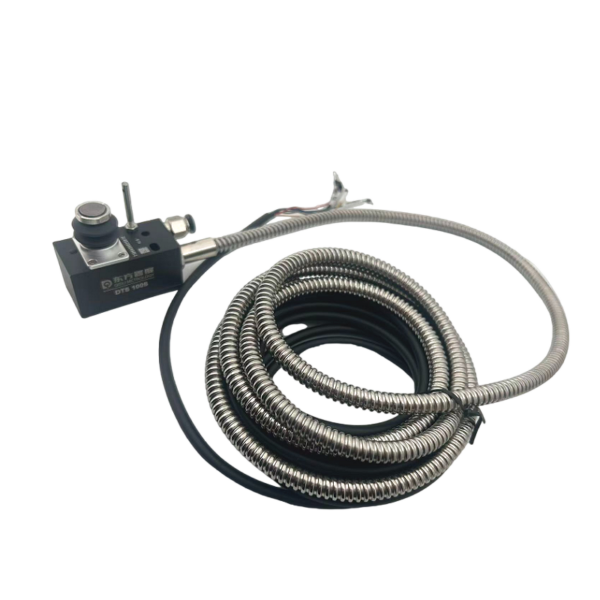

| Signal transmission mode | Cable 5m,oil resistance,6cores,φ4.8 | |
| Sealing | IP68 | |
| Triggerforce | 1.8N(Installation Status: Vertical) | |
| Touch pad material | Tungsten carbide | |
| Surface treatment | Grinding 4S | |
| Contact nominal value | DC24V 20mA(MAX) Recommended value10mA)Resistive Load | |
| Protective tube | 1.5m,minimum radius R7 | |
| LED light | Norma: off; active: on | |
