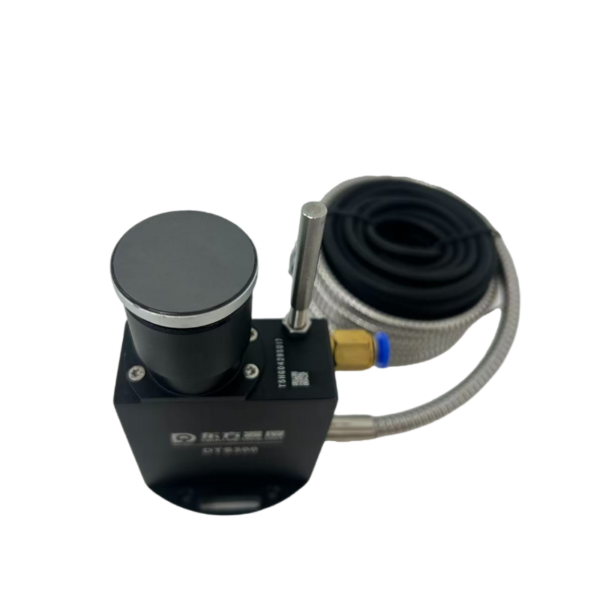

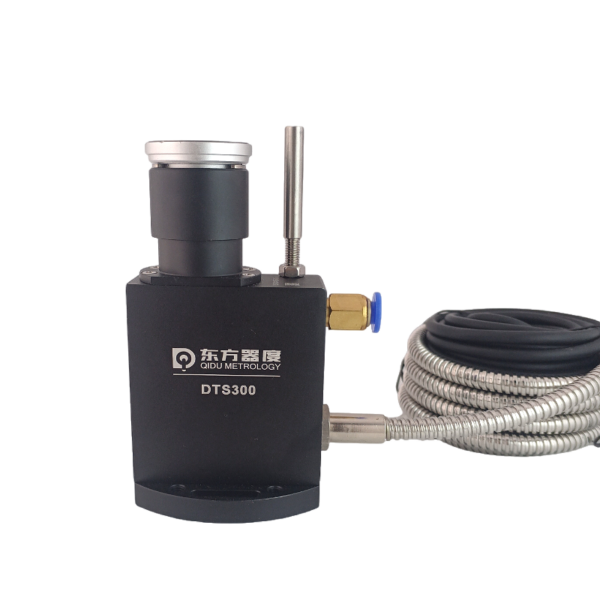

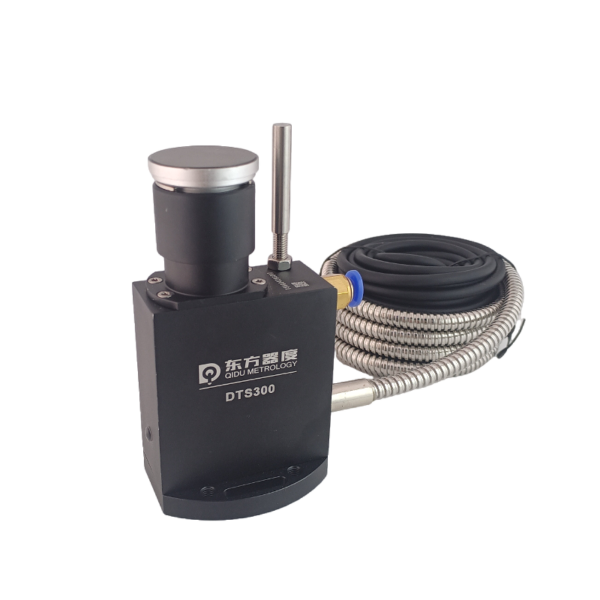

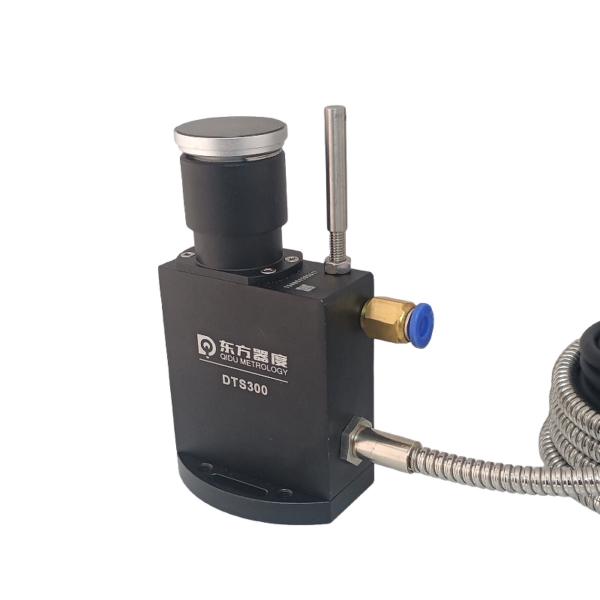

CNC Z-Axis Tool Setter Suitable for large diameter tools
Premium CNC Z‑axis tool setter for precise tool height detection and automatic tool length measurement. Enhances CNC machining accuracy, reduces setup time, and improves production efficiency. Durable design with responsive sensing and robust cabling for reliable performance.
Main Feature:
IP 68 protection level
Large Strok design of 11mm
Precision <0.5uM.
Photoelectric sensor trigger, higher accuracy and longer life
Advantage:
Automatically measures tool length, tool diameter, andtool deflection. The high-precision photoelectric triggersensor can operate in various complex environments,improving tool detection speed and accuracy, reducingerrors, minimizing scrap, and increasing productivity.
Product Parameters:
| Item NO. | DTS300 | |
| Diameter of touch pad | φ30 | |
| Trigger direction | +Z | |
| Pre-stroke | 0.7mm | |
| Output | A:NO | |
| Stroke | 11mm | |
| Trigger protection travel | 5.5mm | |
| Repeatablitity precision(2σ） | <1um（speed 50mm/min） | |
| Trigger life | >10 million | |
| Signal transmission mode | Cable 5m,oil resistance,6cores,φ4.8 |
|
| Sealing | IP68 | |
| Triggerforce | 2.2N(Installation Status: Vertical) | |
| Touch pad material | Tungsten carbide | |
| Surface treatment | Grinding 4S | |
| Contact nominal value | DC24V 20mA(MAX) Recommended value10mA)Resistive Load | |
| Protective tube | 1.5m,minimum radius R7 | |
| LED light | Norma: off; active: on | |
