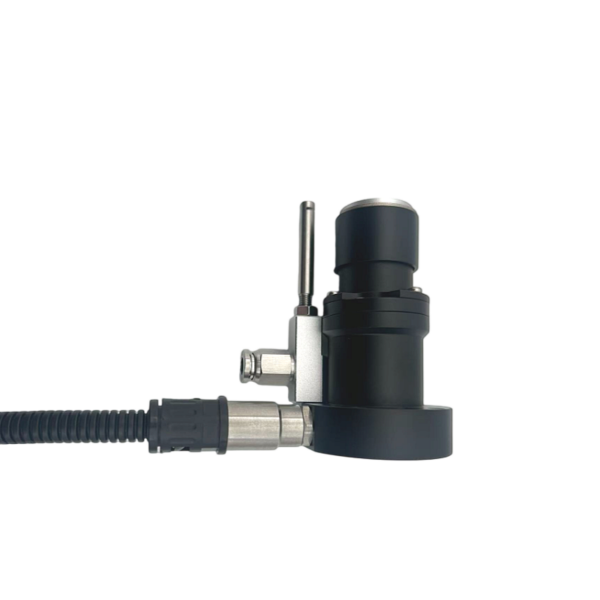

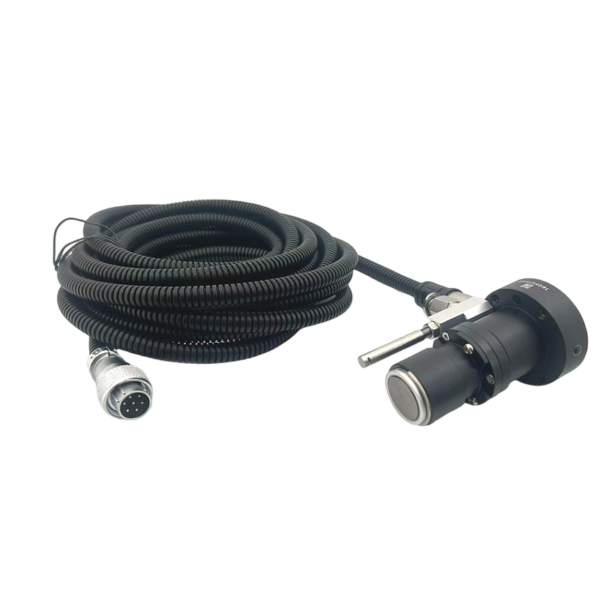

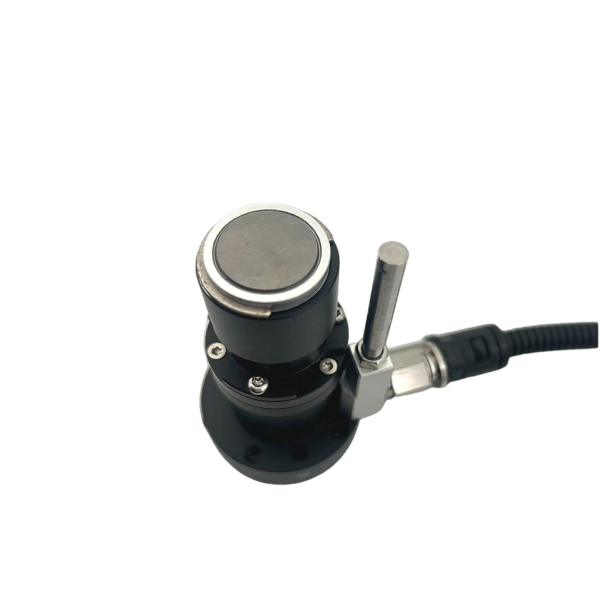

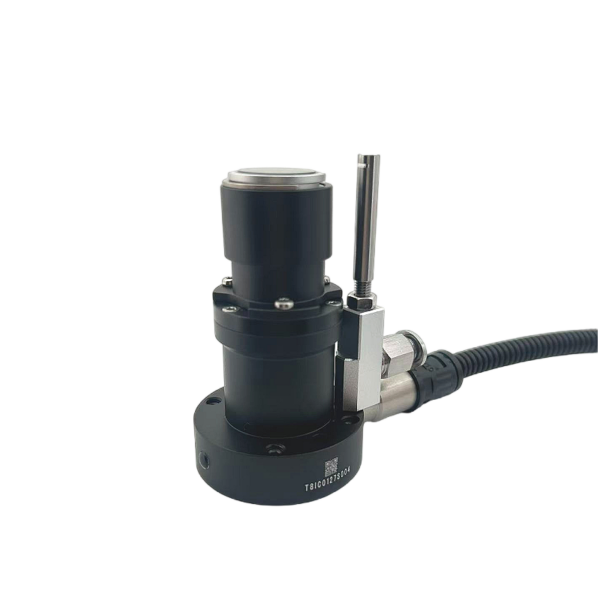

Cost-effective CNC One-Way Optical Tool Setter Auto Measure
Cost‑effective CNC one‑way optical tool setter for automatic tool measurement. Offers reliable optical trigger for fast, accurate Z tool length detection and breakage signaling. Compact and durable with easy cable integration for agile CNC setups.
Main Feature:
IP 68 protection level
Precision <0.5uM.
Photoelectric sensor trigger, higher accuracy and longer life
Advantage:
Designed for precision CNC engraving machines. Automatically measures tool length, tool diameter, and tool deflection. The high-precision photoelectric trigger sensor can operate in various complex environments,improving tool detection speed and accuracy, reducing errors, minimizing scrap, and increasing productivity.
Product Parameters:
| Item NO. | DTS200C-B | |
| Diameter of touch pad | φ20 | |
| Trigger direction | +Z | |
| Pre-stroke | 0.7mm | |
| Output | A:NO | |
| Stroke | 8.5mm | |
| Trigger protection travel | 5.5mm | |
| Repeatablitity precision(2σ） | <1um（speed 50mm/min） | |
| Trigger life | >10 million | |
| Signal transmission mode | Cable 5m,oil resistance,6cores,φ4.8 | |
| Sealing | IP68 | |
| Triggerforce | 2.2N(Installation Status: Vertical) | |
| Touch pad material | Tungsten carbide | |
| Surface treatment | Grinding 4S | |
| Contact nominal value | DC24V 20mA(MAX) Recommended value10mA)Resistive Load | |
| Protective tube | 1.5m,minimum radius R7 | |
| LED light | Norma: off; active: on | |
