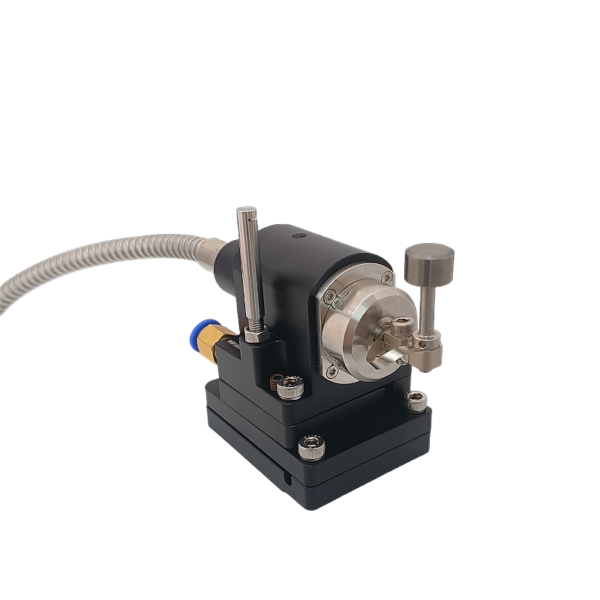

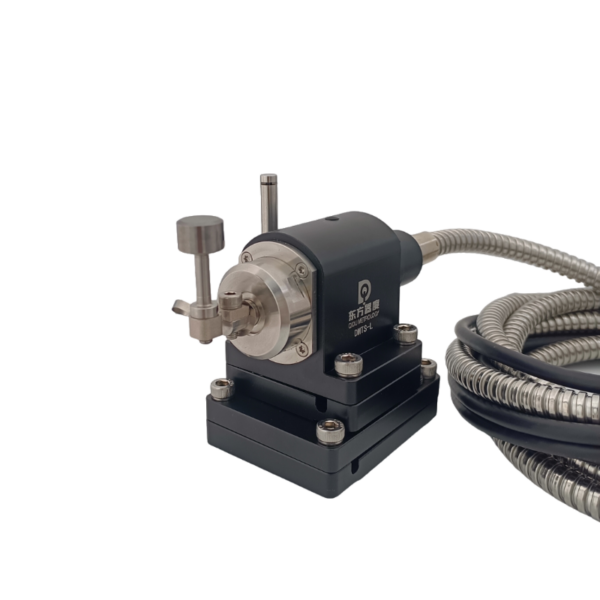

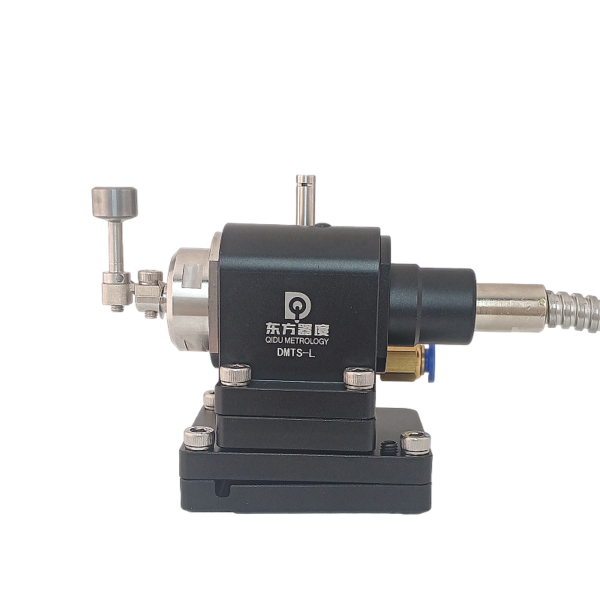

Optical Wired Five-Axis Cnc Touch Tool Setter High Accuracy
CNC 5-axis wired tool setter for automatic tool length and diameter measurement with IP68 sealing and clear status indicator lights. Ideal for 5-axis machines that do not rotate the worktable. Hard-alloy trigger with Qidu micro-deformation auto-reset delivers high stability, repeatability, compensation, and tool breakage detection.
Main Feature：
Automatic measurement for tool length and diameter
Ip68 Protective Level
Indicator lights for easy visibility of operational status
Suitable for CNC machine that do not rotate the worktable
Advantage：
It can perform in-machine measurements of tool length and diameter, automatic compensation, and tool breakage detection. The triggering sensor utilizes a high-strength hard alloy structure and the micro-deformation autonomous reset technology developed by Qidu, ensuring excellent product stability and high repeatability in positioning accur.
Product Parameters:
| Item No. | DMTS-L | |
| Output | A:NO | |
| Trigger direction | ±X,±Y,+Z | |
| Pre-Stroke | NO | |
| Stroke | XY plane 6.0mm | Z 5.1mm |
| Repeatability precision（2σ） | <1um（speed 30mm/min） | |
| Trigger life | >10 million | |
| Sealing | IP68 | |
| Triggerforce | 1.1N ~2.2N (depends on the sensing direction） | |
| Signal Transmission | Cable 5m,oil resistance,6cores,φ5.5 | |
| Touch pad material | Disk stylus (Super-hard Alloy, Vickers Hardness HV1500) | |
| Surface treatment | Grinding 4S | |
| Contact nominal value | DC24V, 20mA (MAX), recommended 10mA, resistive load | |
| Protective tube | 1.5m, minimum bending radius R7 | |
| LED light | Normal:OFF;Active:ON | |
