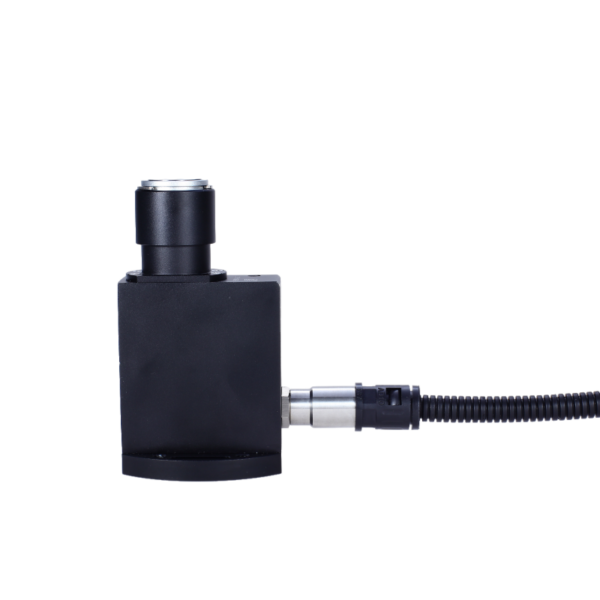

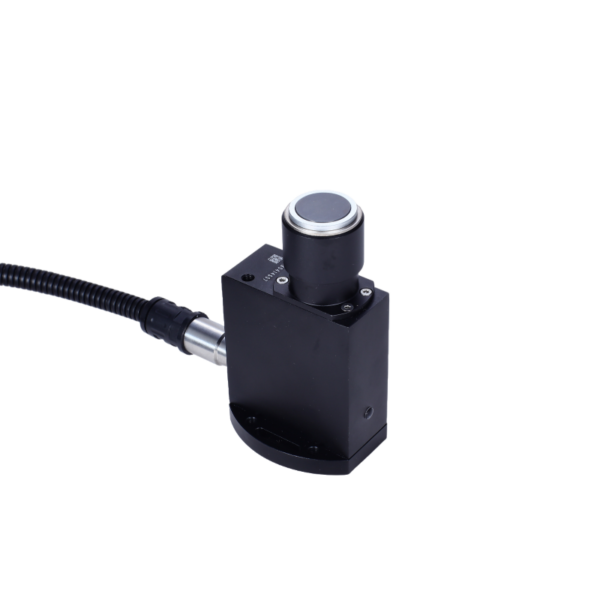

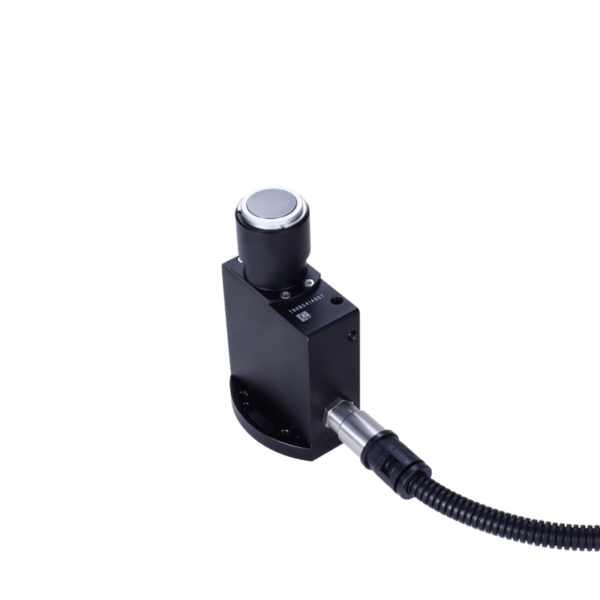

CNC Photoelectric Z-Axis Tool Setter for Engraving Machine
CNC photoelectric Z‑axis tool setter for engraving machines delivers fast, accurate non‑contact tool length detection and breakage signal output. Compact, durable design simplifies automatic tool setting and improves machining precision with reliable trigger repeatability.
Main Feature:
IP 68 protection level
Large Strok design of 11mm
Precision <0.5uM.
Photoelectric sensor trigger, higher accuracy and longer life
Advantage:
Designed for precision CNC engraving machines. Automatically measures tool length, tool diameter, and tool deflection. The high-precision photoelectric trigger sensor can operate in various complex environments,improving tool detection speed and accuracy, reducing errors, minimizing scrap, and increasing productivity.
Product Parameters:
| Item NO. | DTS200B | |
| Diameter of touch pad | φ20 | |
| Trigger direction | +Z | |
| Pre-stroke | 0.7mm | |
| Output | A:NO | |
| Stroke | 11mm | |
| Trigger protection travel | 5.5mm | |
| Repeatablitity precision(2σ） | <1um（speed 50mm/min） | |
| Trigger life | >10 million | |

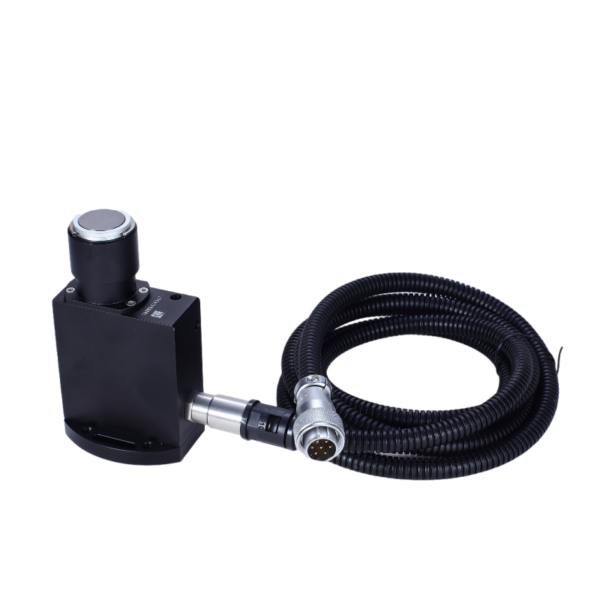

| Signal transmission mode | Cable 5m,oil resistance,6cores,φ4.8 |
|
| Sealing | IP68 | |
| Triggerforce | 2.2N(Installation Status: Vertical) | |
| Touch pad material | Tungsten carbide | |
| Surface treatment | Grinding 4S | |
| Contact nominal value | DC24V 20mA(MAX) Recommended value10mA)Resistive Load | |
| Protective tube | 1.5m,minimum radius R7 | |
| LED light | Norma: off; active: on | |
