CNC Probe Basics: Using a Touch Probe to Pick Up Bores and Bosses

In industry of CNC machining, precision is the key,ensure each feature is exactly where it should be is vital. That’s the main value of CNC probes—tiny but powerful tools that can make a huge difference in your manufacturing process. In this blog, we’ll focus on using a touch probe to pick up bores and bosses.

Learning the basics of CNC probes and how they interact with bores and bosses can not only help you achieve higher accuracy but also streamline your workflow, reducing setup times and ensuring better overall results. Let’s dive deep into how touch probes work and how can harness their capabilities to improve your CNC machining operations.

What Is CNC Touch Probe?

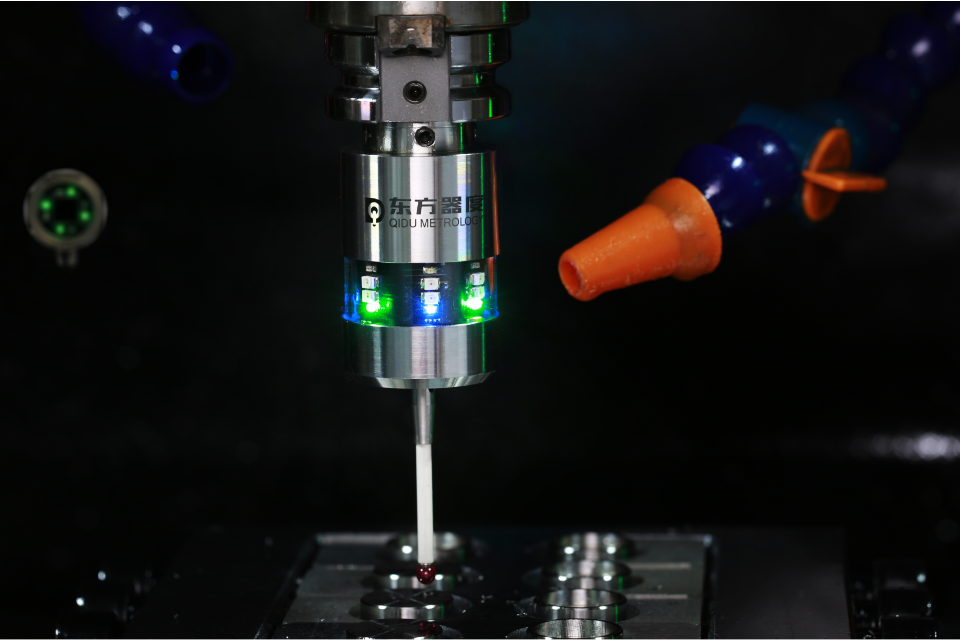

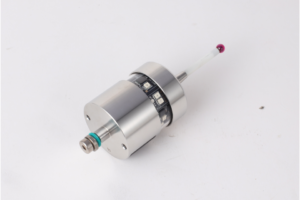

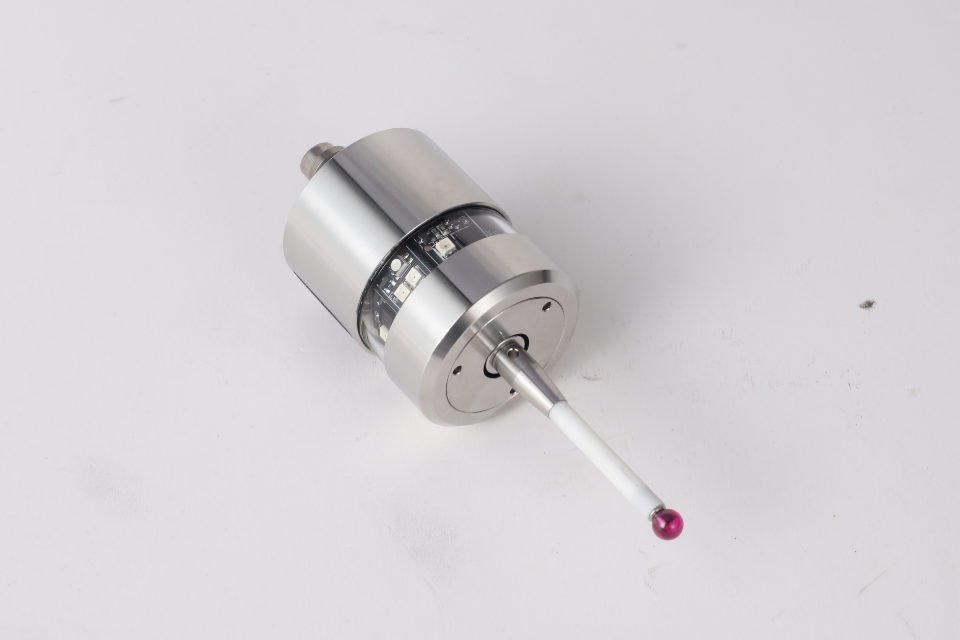

CNC touch probe is a measuring tool that attaches to the spindle of CNC machine. It allows for automatic measurement of parts during the machining process. Touch probe works by making contact with the surface of the workpiece, and sending a signal back to the CNC control system when it touches something, recording this data for future reference.https://cnc-probe.com/cnc-touch-probes/

Touch probe likes a “finger” on CNC machine, capable of finding exact positions, diameters, and depths—anything from measuring the size of a feature to verifying tool offsets. In this context, we’re particularly concerned with how probes can pick up bores and bosses, which are key features in many machined parts.https://cnc-probe.com/high-quality-cnc-infrared-touch-probe-with-wireless-link/

What are Bores and Bosses?

Bores: Bores is meant cylindrical holes that are often drilled, reamed, or bored into a workpiece to a precise diameter. These can be through-holes or blind holes, and they can be of varying depths.

Bosses: Bosses is meant raise features on a part that can serve many purposes, such as housing bolts, creating attachment points, or aiding in assembly. They can be simple or complex, and their dimensions need to be accurate for proper fitment.

Being able to accurately pick up these features with a touch probe is the key to ensuring that every part meets its design specifications.

How Does a Touch Probe Work?

Touch probehttps://cnc-probe.com/cnc-touch-probes/ typically works in one of two ways: either probing the surface of the workpiece to determine its position or measuring specific points on a feature (like the edge of a bore or the center of a boss).

Probing the Surface: Probe extends and touches the surface of the part. When it makes contact, it sends an electrical signal to the machine’s control system, telling it exactly where the probe made contact. From this, the system can calculate the location of the part relative to the machine’s coordinate system.

Measuring Points on a Feature: Touch probe can be used to measure a series of specific points on a feature, like a bore’s inner diameter or the center of a boss. These measurements are then processed by the CNC controller to accurately position the part for further machining.

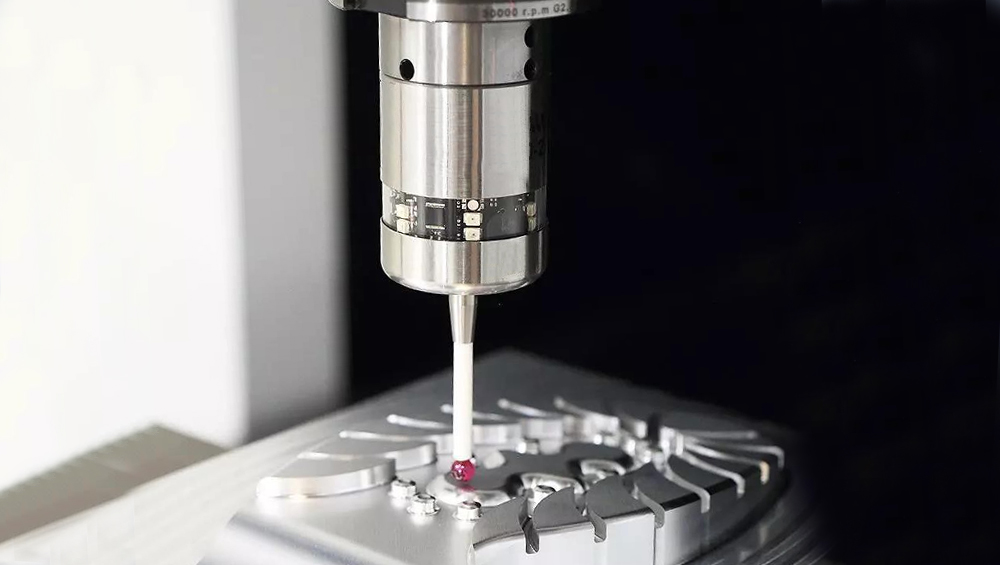

Picking Up Bores with a Touch Probe

About bores, particularly blind ones, can be tricky to measure manually. But with a touch probehttps://cnc-probe.com/cnc-transmission-wired-touch-probe-high-accuracy-signal/, you can take the guesswork out of the process. Here’s how you do it:

Step 1: Set Up the Probe

Ensure that your CNC machine is equipped with a touch probe, and configure it in your machine’s settings.

Step 2: Align the Probe with the Bore

You’ll begin by positioning the probe to approach the bore. This is typically done by setting the machine to a safe start position, ensuring it is near but not touching the part.

Step 3: Probe the Bore

As the probe touches the bore wall, the CNC machine records the contact points. For a more comprehensive reading, the machine might probe the bore at several points around the circumference, gathering data on its exact diameter and depth.

Step 4: Verify Dimensions

The CNC machine processes this data to verify the bore’s dimensions. This might include the diameter, concentricity, and depth. It’s now much easier to ensure that your bore is within specification without remove the part and manually measure it.

Picking Up Bosses with a Touch Probe

Bosses with their varying heights and geometries, can also be precisely measured with a touch probe. Here’s the general process:

Step 1: Position the Probe Above the Boss

Just like with bores, positioning is crucial. Touch probe should be aligned so it can make contact with the top surface of the boss, and ensuring no collisions during the probing process.

Step 2: Probe the Boss’s Center

To accurately locate the center of a boss (particularly important if it’s going to be used for mounting components), the probe can be programmed to touch the boss in multiple directions—left, right, front, and back. By measuring these contact points, the machine can calculate the exact center of the boss.

Step 3: Measure the Height

Touch probe can be used to measure its exact height relative to the workpiece’s datum (reference point). This ensures that the boss will fit into other components or assemblies without issues.

Step 4: Verify Fitment

When the probe gather all the necessary data, the CNC machine will process the measurements and compare them against the part’s specifications. If there are any deviations, the system can make real-time adjustments, or you’ll be alerted to take corrective action.

Why Use Touch Probe for Bores and Bosses?

Increased Accuracy: Touch Probe provides highly accurate measurements, even for features that are difficult to measure manually like deep bores or small bosses.

Reduced Setup Time: With a probe, you don’t need to remove your part from the machine for measurement. This will reduce setup time and keeps workflow smooth and efficient.

Automation: Touch probe can reduce the need for manual measurements, and reduce human error and freeing up operators for other tasks.

Improved Part Quality: By ensuring that bores and bosses are always within tolerance, you’re more likely to produce high-quality parts that fit together perfectly in their intended application.https://cnc-probe.com/high-precision-measurement-cnc-wireless-radio-touch-probe/

Finally

The ability to pick up bores and bosses with a CNC touch probe is a key for many manufacturers.Because it provides a level of precision, speed, and automation that enhances productivity and ensures top-notch part quality.

For manufacturers , CNC probing technology is an investment in accuracy, efficiency, and future growth. As the technology evolves, the potential for even more advanced probing techniques—such as automatic in-process corrections,will push the boundaries of what’s possible in CNC machining.

Whether you’re working on aerospace components, automotive parts, or intricate industrial machinery, touch probe can help you unlock the full potential of your CNC machine.
